LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
1 / 5
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm
LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm

LND RS7812 Factory Wholesale 120V 6196RPM 50.4W Permanent Magnet Compact DC Brushed Motor Home Appliance Automotive Fan 42mm

Send Inquiry

Product Description

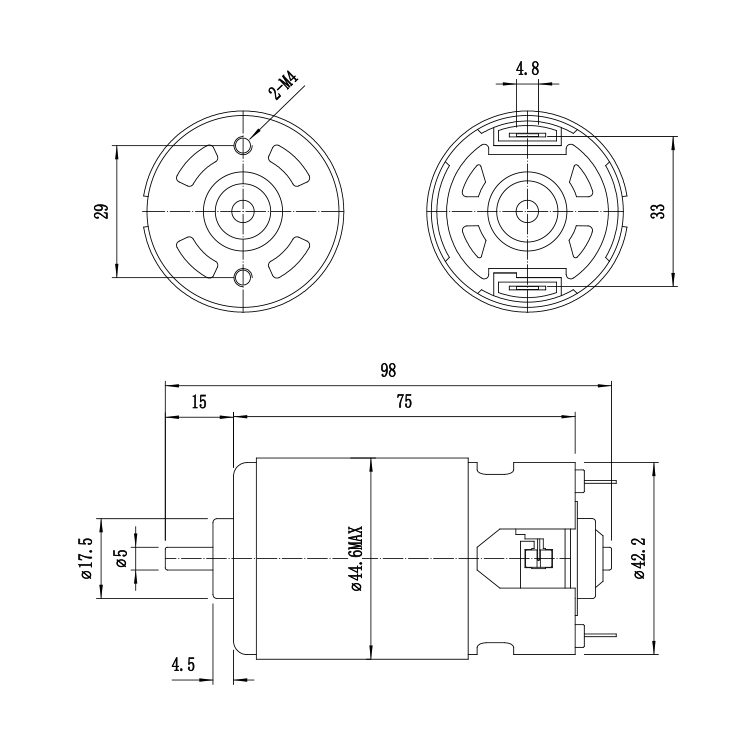

Motor Spec Image 1
Motor Spec Image 2
Motor Spec Image 3
Nominale Nessun carico Alla massima efficienza Allo stallo
Tensione Velocità Corrente Velocità Corrente Efficienza Coppia Uscita Coppia Corrente
VDC RPM A RPM A % G.cm W G.cm A
120 6196 0.07 5452 0.53 79 901.2 50.4 7510.3 3.94
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Detail Image 9
Detail Image 10
Frequently Asked Questions
Q: What is the rated voltage of this electric motor?
A: The motor operates at a nominal voltage of 120 VDC, which is suitable for high-voltage DC applications demanding stable performance.
Q: What is the maximum efficiency reached by this motor?
A: This motor reaches a high efficiency rating of 79% when operating at 5452 RPM with a current draw of 0.53 A and output power of 50.4 W.
Q: What are the no-load specifications for this model?
A: Under no-load conditions, the motor runs at a speed of 6196 RPM with a minimal current consumption of only 0.07 A.
Q: What is the stall torque and current capacity?
A: At stall condition, this high-performance motor delivers a torque of 7510.3 G.cm with a maximum current of 3.94 A.
Q: Can these specifications be customized for specific industrial uses?
A: Yes. Technical parameters such as voltage, operating speed, output power, and shaft design can be adjusted to meet specific performance requirements.
