RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
1 / 5
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame
RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame

RS7812 Customized 120V/6196RPM/50.4W Permanent Magnet High-voltage DC Brushed Motor Smart Home Vacuum Cleaners & Fans 42mm Frame

Send Inquiry

Product Description

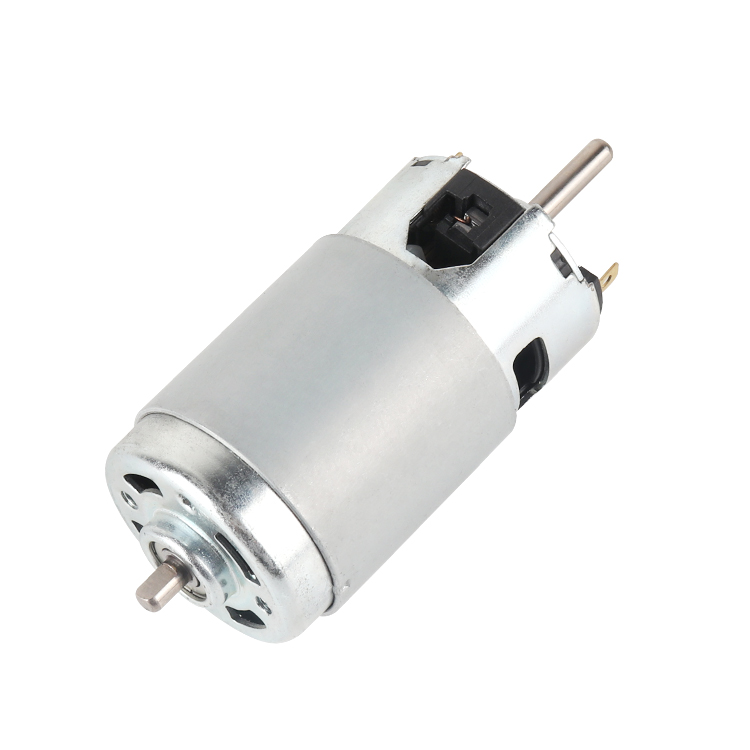

Motor Product View 1

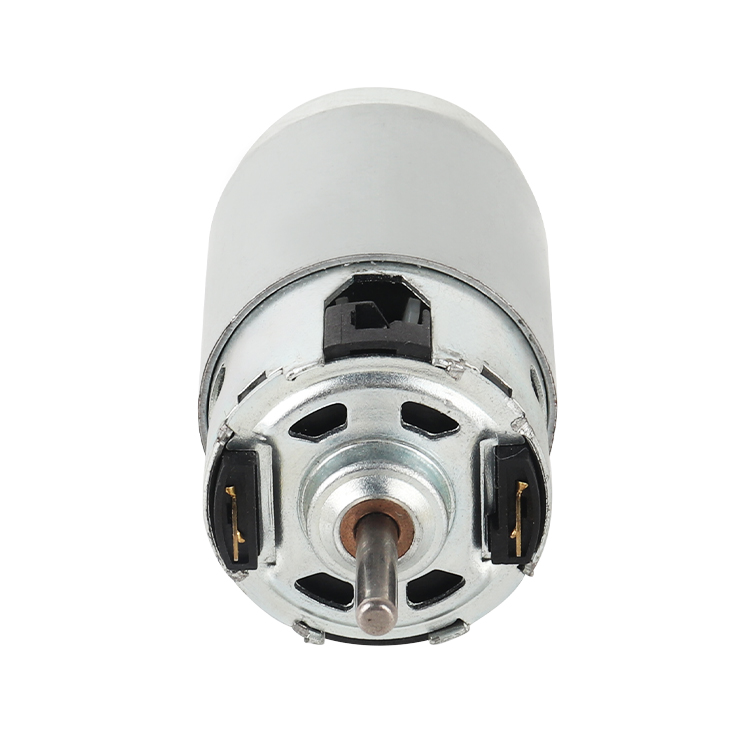

Motor Product View 2

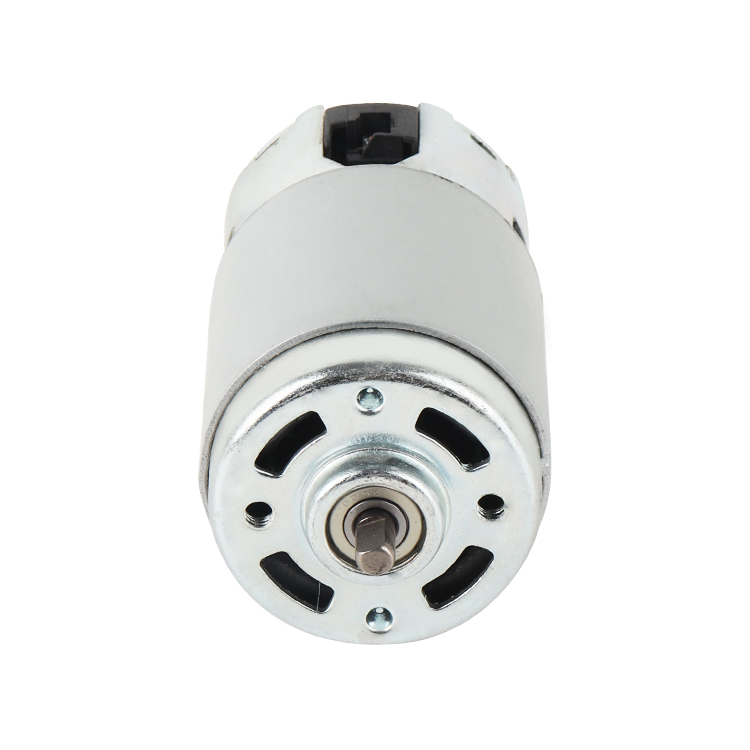

Motor Product View 3
📊
Technical Specifications & Performance Parameters
Nominal Voltage No Load At Maximum Efficiency At Stall
Speed (RPM) Current (A) Speed (RPM) Current (A) Efficiency (%) Torque (G.cm) Output (W) Torque (G.cm) Current (A)
120 VDC 6196 0.07 5452 0.53 79% 901.2 50.4 7510.3 3.94

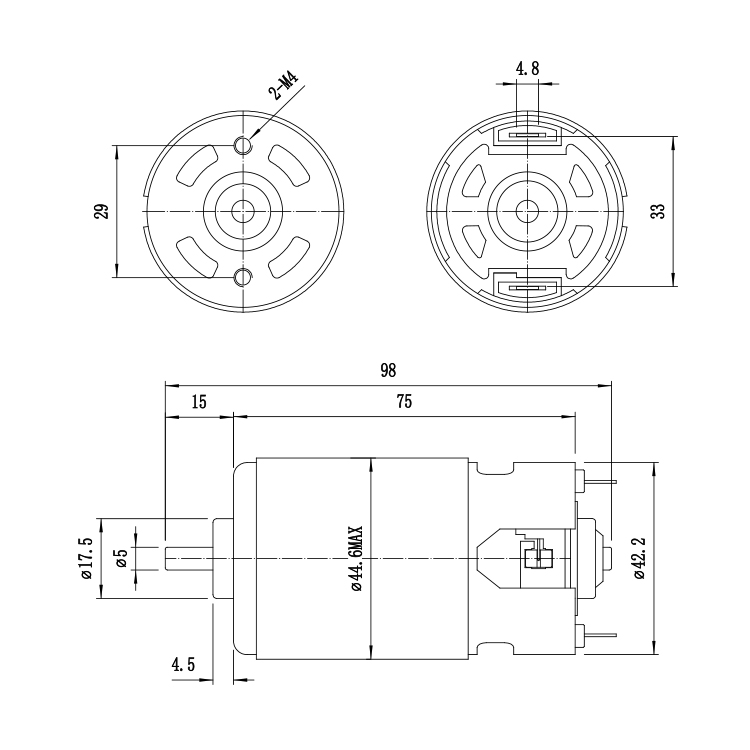

Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Performance Chart 1
Performance Chart 2
Detail View 1
Detail View 2
Package View 1
Package View 2
Final Assembly View
❓ Frequent Asked Questions
What is the nominal voltage for this motor series? The motor is designed for a nominal voltage of 120 VDC, providing stable performance across various applications.
What is the maximum efficiency of the motor under load? At its peak efficiency point, the motor reaches approximately 79%, optimizing energy consumption and heat dissipation.
How much torque does the motor generate at stall? The motor provides a significant stall torque of 7510.3 G.cm, making it suitable for high-starting torque requirements.
What is the typical no-load current? The no-load current is exceptionally low at 0.07A, indicating high manufacturing precision and low internal friction.
Does the motor support high-speed operation? Yes, the motor features a no-load speed of 6196 RPM and maintains a high speed of 5452 RPM even at maximum efficiency.
What is the power output at maximum efficiency? At the most efficient operating point, the motor delivers a power output of 50.4W.
