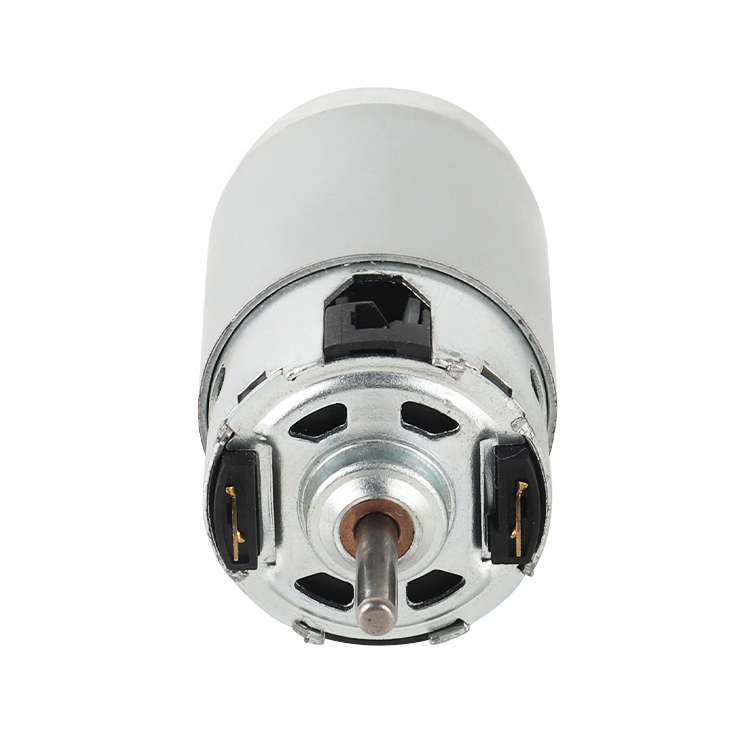

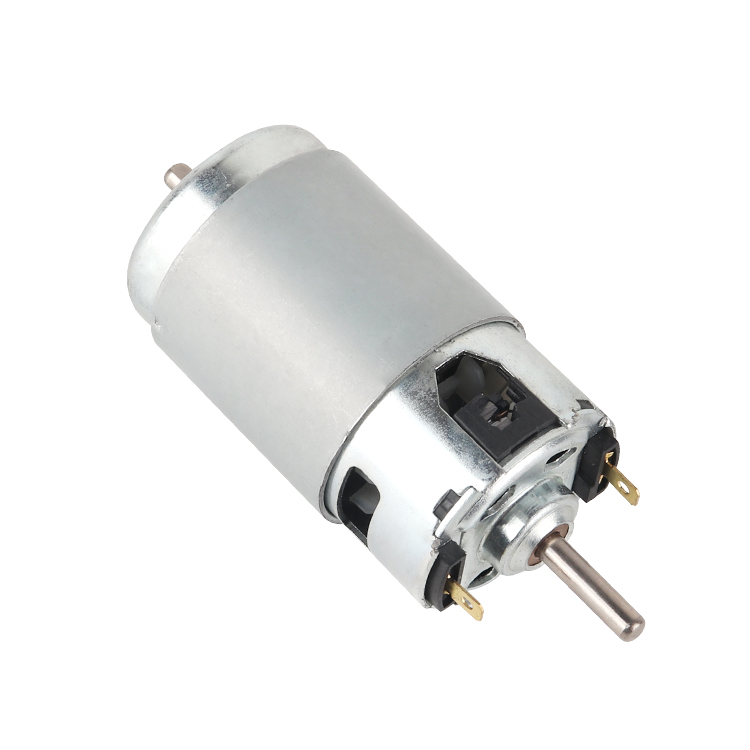

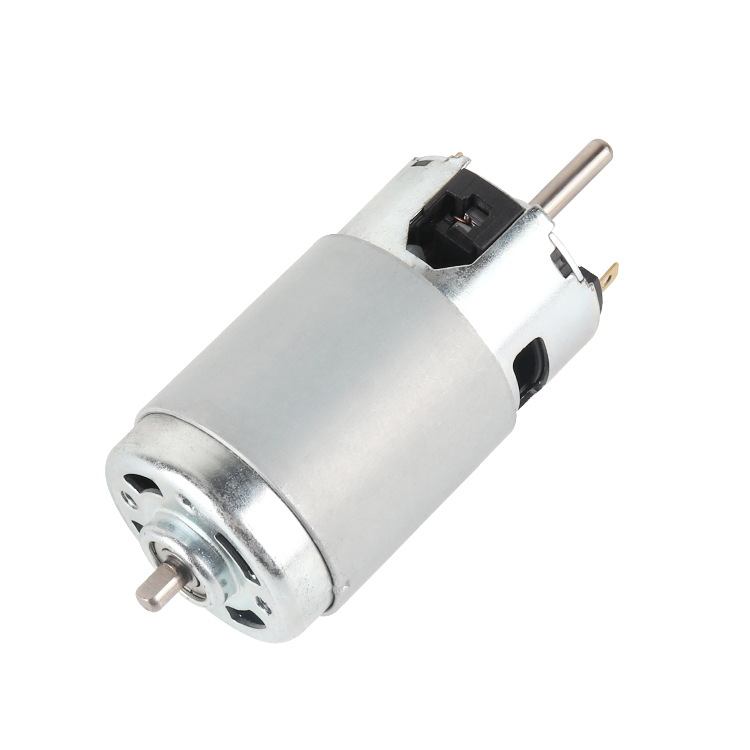

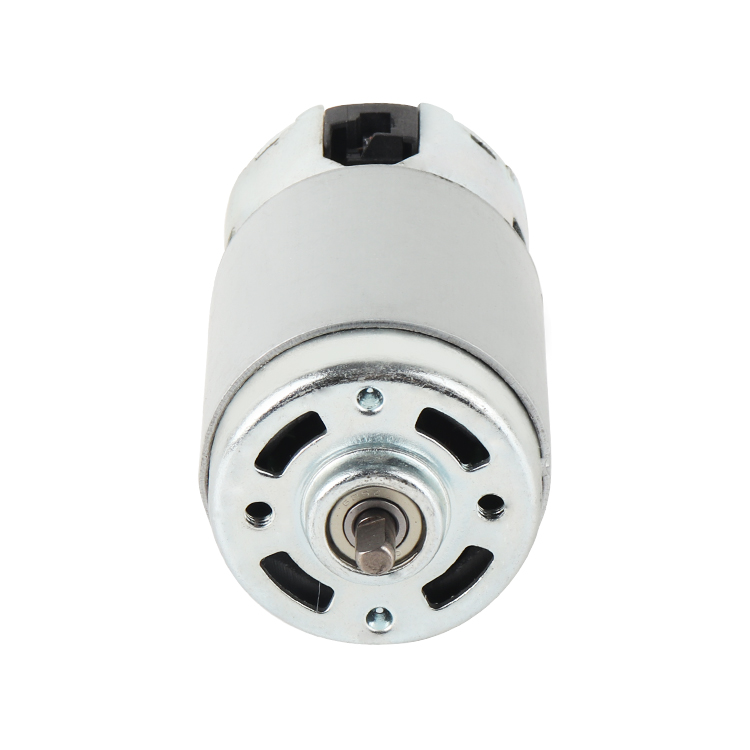

RS7812 Professional 120V/6196RPM/50.4W Permanent Magnet High Voltage DC Brushed Motor Smart Home Fan Panel Mount

1 / 5

RS7812 Professional 120V/6196RPM/50.4W Permanent Magnet High Voltage DC Brushed Motor Smart Home Fan Panel Mount

Send Inquiry

Product Description

Technical Performance Specifications

Nominale	Nessun carico (No Load)		Alla massima efficienza (At Max Efficiency)					Allo stallo (At Stall)
Nominale	SPEED (RPM)	Corrente (A)	Velocità (RPM)	Corrente (A)	Efficienza (%)	Coppia (G.cm)	Uscita (W)	Coppia (G.cm)	Corrente (A)
120 VDC	6196	0.07	5452	0.53	79	901.2	50.4	7510.3	3.94

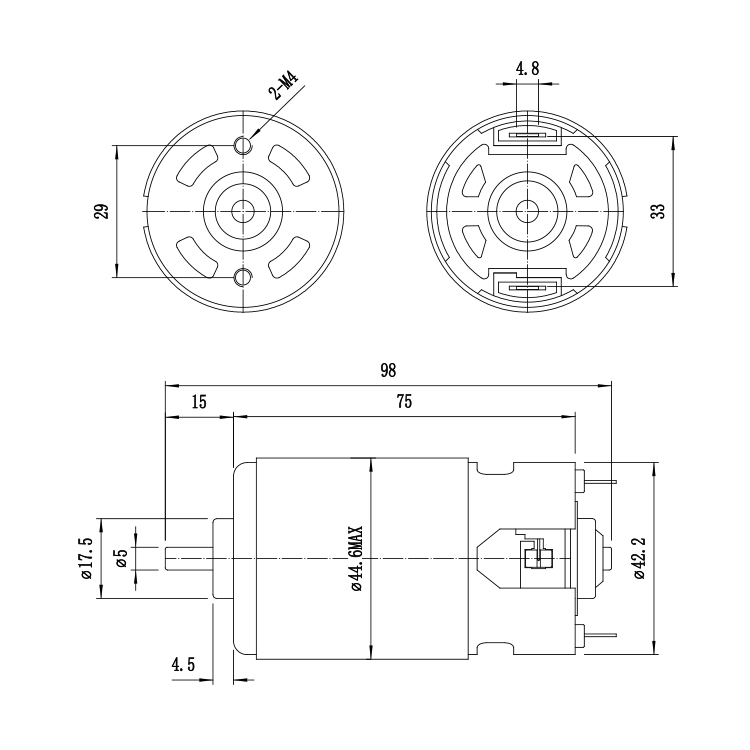

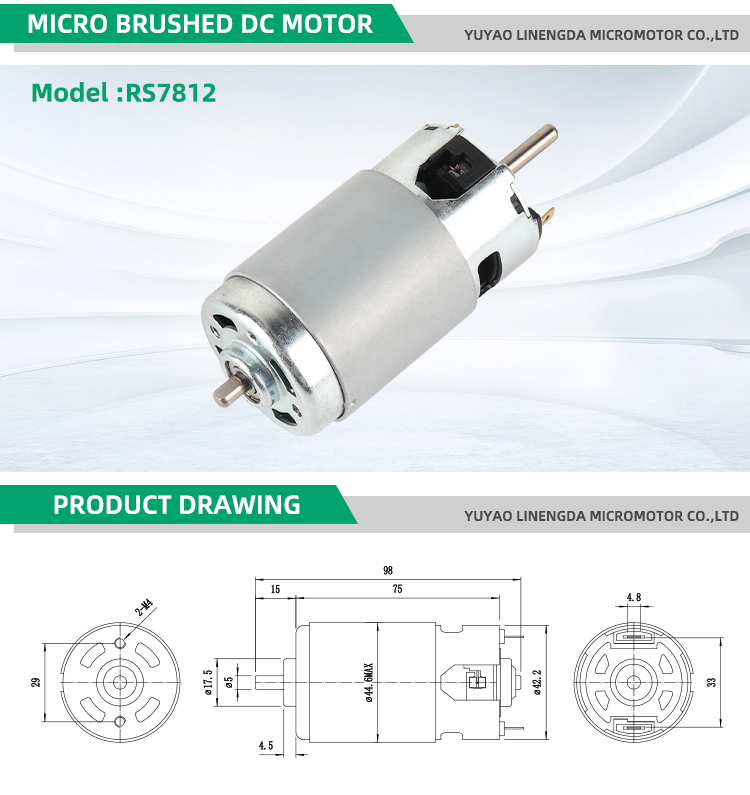

Dimensional Drawings & Details

Frequently Asked Questions

1. What is the rated voltage for this motor series?

This specific motor model is designed for a nominal voltage of 120 VDC, providing stable performance across its operational range.

2. What is the maximum efficiency of the motor?

The motor reaches a maximum efficiency of 79% when operating at approximately 5452 RPM with a current of 0.53A.

3. What are the performance characteristics at stall?

At stall condition, the motor generates a maximum torque of 7510.3 G.cm with a current draw of 3.94A.

4. What is the typical no-load speed?

Under no-load conditions, the motor operates at a high speed of 6196 RPM with a very low current consumption of 0.07A.

5. Can this motor be used for continuous high-torque applications?

While the motor has a high stall torque, it is optimized for peak efficiency at 901.2 G.cm. For continuous operation, it is recommended to stay within the maximum efficiency parameters to ensure longevity.

6. Is the motor design suitable for industrial integration?

Yes, the detailed dimensional drawings provided show standardized mounting points and shaft dimensions suitable for various industrial and commercial equipment integrations.
